THREADED PIPES IN RIGID PVC COLOR BLUE FOR ARTESIAN WELLS
Rigid PVC pipes according to the requirements of the Italian Ministry of Health (M.D. no. 174 of 06/04/2004).
Use: ARTESIAN WELLS.

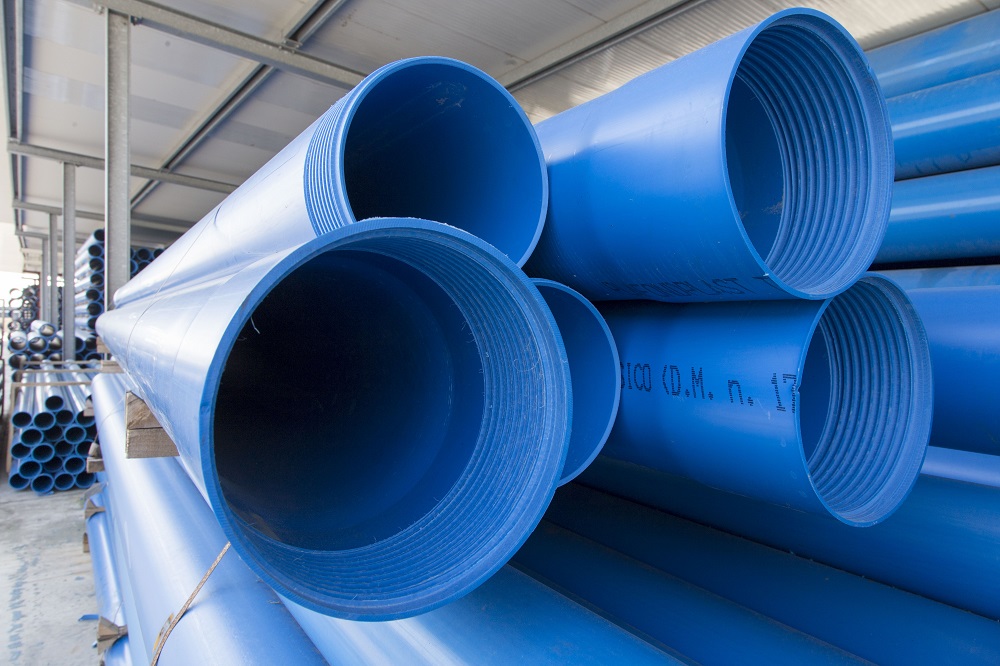

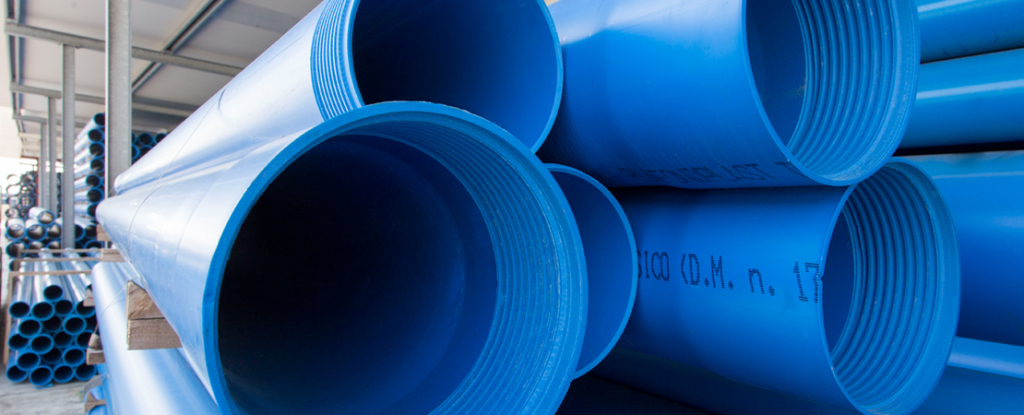

The pipes in rigid blue PVC are threaded male-to-female for artesian wells for drinking water.
The first company in Italy to produce the threading system on pipes, today PLAFONDPLAST is specialized in the production of different sized threaded pipes.
The range of diameters starts from 4” and reaches a maximum diameter of 630 mm.
The high quality of the raw materials used, and the technology of the production systems, ensure the correct function of pipes and filters even for very large, deep wells.
TECHNICAL FEATURES:
Durability:
the physical and chemical properties of the PVC used for the production of PLAFOND pipes and the high quality of the pipes themselves, guarantees the long life of the well.
Dielectric strength:
PLAFOND pipes are made of synthetic materials that are not damaged by stray underground currents.
Anti-corrosive properties:
PLAFOND pipes are protected against waterbed corrosion, which can often be extremely aggressive.

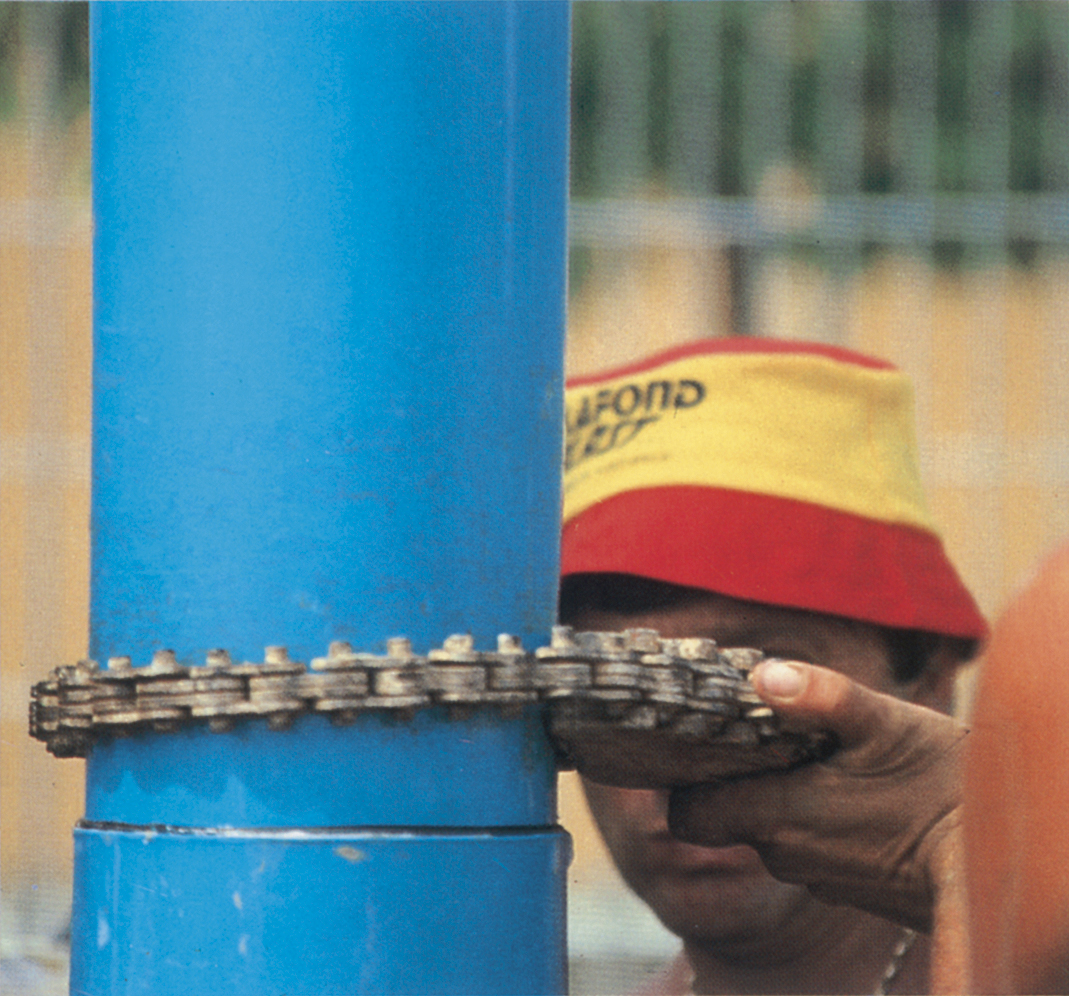

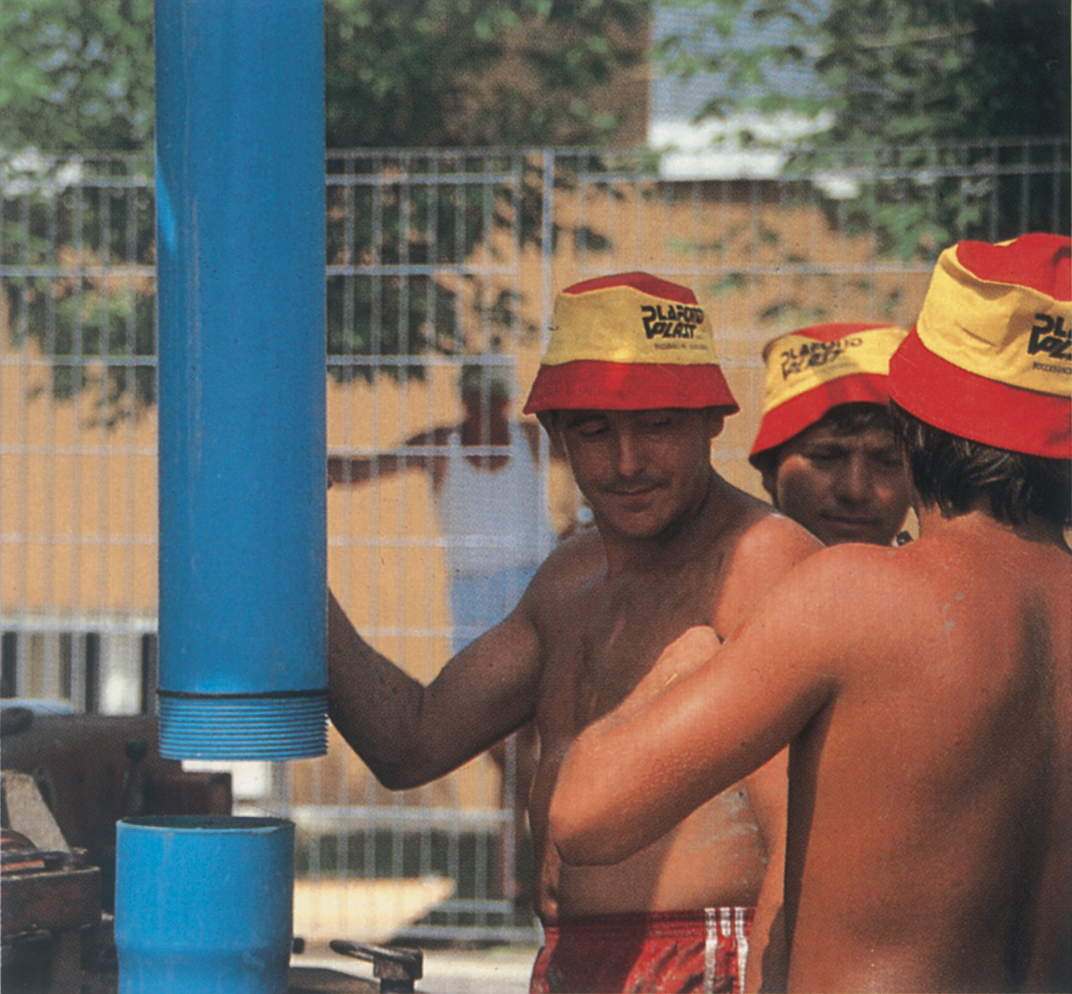

Simple jointing:
the special male-female threading permits rapid, safe jointing without the use of sealant such as putty or fillers.
Watertight seal:
the seal is guaranteed by special O-rings on the joints.
Hygiene:
PLAFOND pipes and filters are produced in accordance with the Ministry of Hygiene sanitary regulations for drinking water equipment (see enclosed
certificate).
Mechanical strength:
PLAFOND’s thicker pipe ends ensure perfect mechanical strength in the threaded area.
Simple to use:
lightweight with simple joints, the pipes are easy to install and can save greatly on labor costs
TECHNICAL SPECIFICATIONS OF PLAFOND FILTERS:
Click image to enlarge
Plafondplast the advantages:
- ECONOMICAL – EFFECTIVE
- HIGH QUALITY PRODUCTS
- EASE OF USE
- GUARANTEED DURABILITY
Downloadable material:
STAGES OF WELL CONSTRUCTION
WELL WASHING OPERATIONS
Certification ISO 9001:2008
